SCM5600D
Integrated chemical wash, DI-water rinse and hot-air drying for SMT/THT assemblies.
610 x 560 x 100 mm, two-layer basketCatalog-verified reference
Cleaning equipment portfolio
Select by contaminant, substrate and production mode.
Every published figure below is tied to a supplied catalog; final chemistry and configuration require sample review.
AC510
Single-chamber batch cleaning for high-mix production, with programmable wash, rinse and drying.
60 L wash tank; 0-18 MOhm monitoringCatalog-verified reference
BC320
Aqueous cleaning, DI-water rinse and hot-air drying for stencils, squeegees and misprinted PCBs.
Up to 737 x 737 x 40 mm stencilsCatalog-verified reference

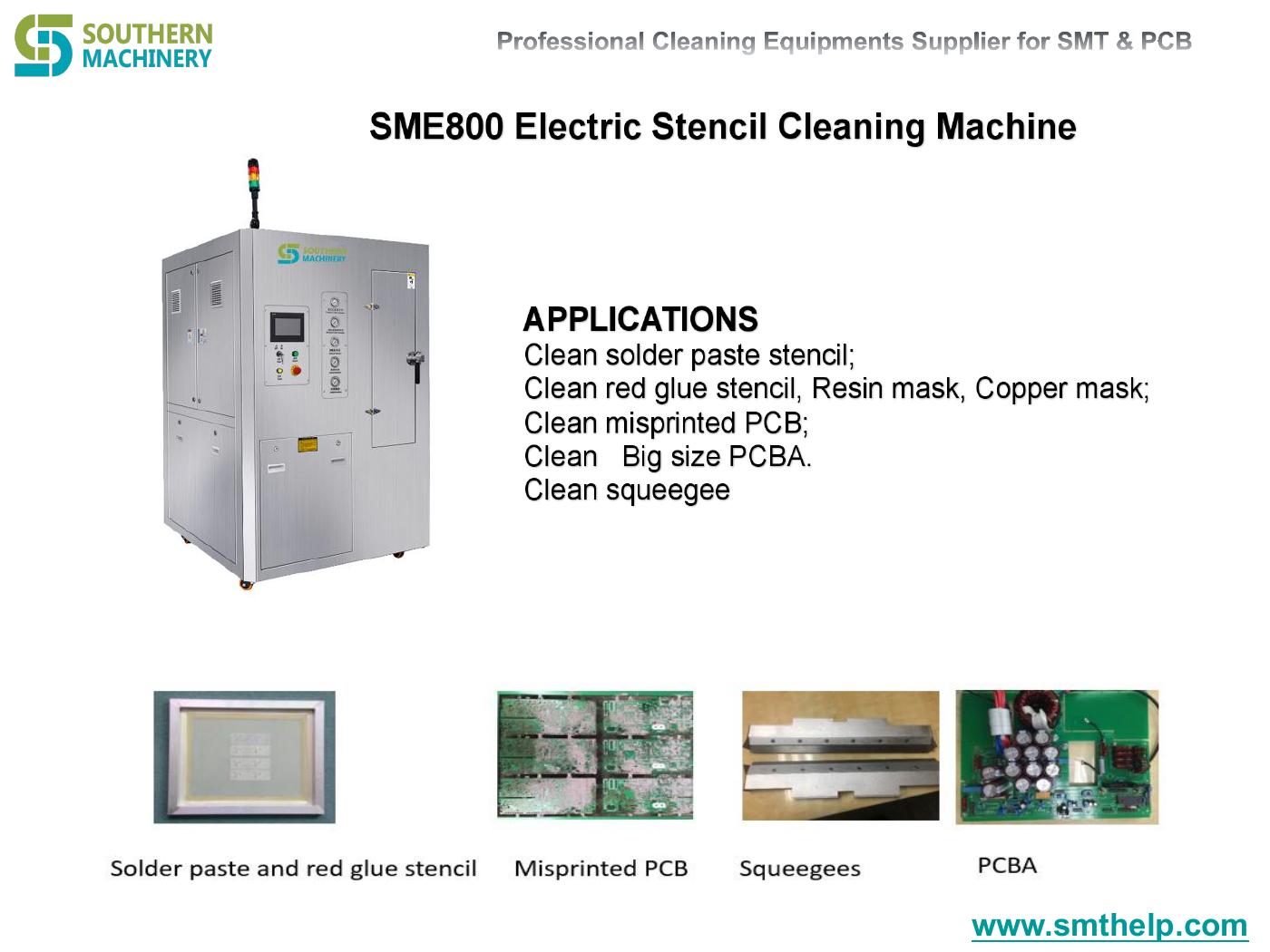

SME800
Electric stencil cleaner with fixed spray rods, moving stencil carriage and closed-loop filtration.
12-15 min estimated full cycleCatalog-verified reference
SME5300
Batch spray cleaning for wave-solder pallets, reflow fixtures and flux-contaminated machine parts.
1,000 mm diameter cleaning basketCatalog-verified reference

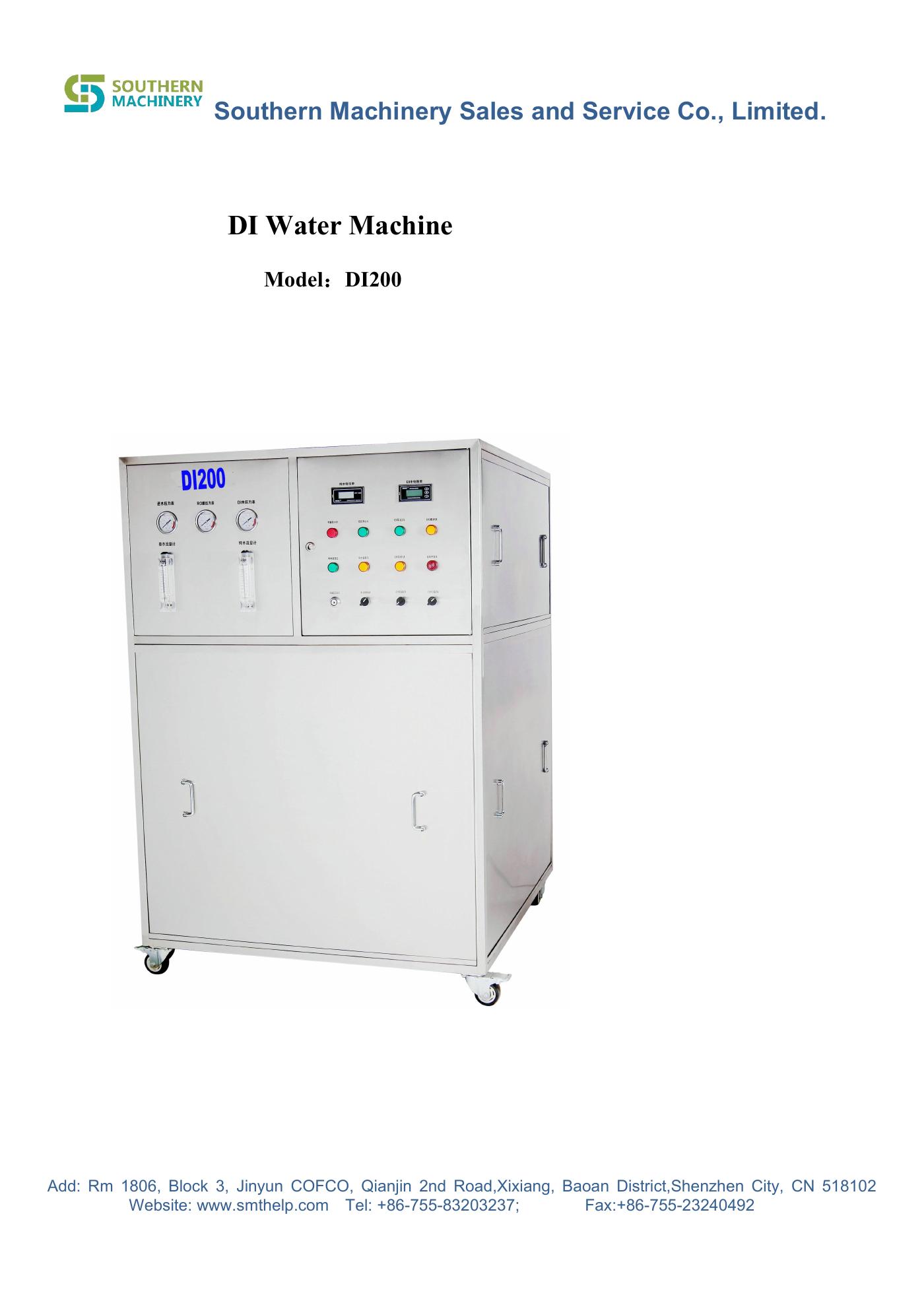

DI200
RO and mixed-bed DI-water generation for PCBA cleaning rinse processes.
200 L/h; resistivity >=10 MOhmCatalog-verified reference
S-168A / S-328A / S-528A
Inline brush cleaning for bare PCB surfaces in 200, 300 and 500 mm width classes.
0.05-1.8 m/min adjustable transportCatalog-verified reference
S-100A
30 L digital ultrasonic tank for maintenance and component cleaning applications.
40 kHz; 600 W ultrasonic powerCatalog-verified reference
Selection matrix
Define the process boundary first.
| Application | Reference model | Catalog evidence | Engineering input |
|---|---|---|---|
| Batch PCBA | SCM5600D / AC510 | Integrated wash, DI rinse and hot-air dry | Board size, shadow areas, residue chemistry |
| Stencil | BC320 / SME800 | Moving stencil with fixed spray rods | Frame size, paste or red glue, solvent rules |
| Pallet & fixture | SME5300 | Rotating basket and multi-direction spray | Fixture material, loading and flux build-up |
| PCB surface | S-168A series | Brush wash, roller and air-knife process | Board width, thickness and line direction |
| DI-water supply | DI200 | 200 L/h, >=10 MOhm catalog rating | Feed-water analysis and peak rinse demand |
Prices, delivery dates, cleaning chemistry, guaranteed cleanliness results and custom dimensions require written confirmation from [email protected].
